Mobile Bain Marie with Hot Cupboard and Heated Gantry

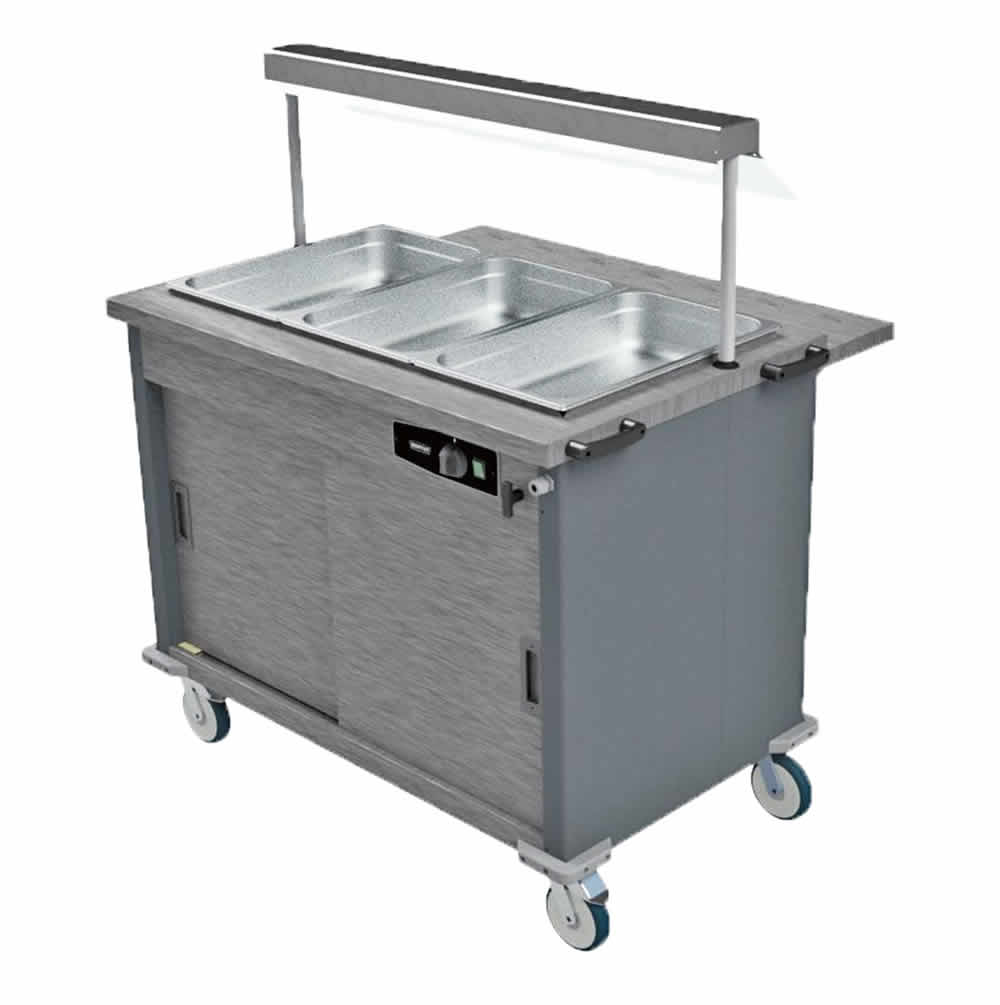

3GN Bain Marie, 3FBMD Model shown - 3FBMD
Spec Sheet

WARRANTY
2 YEARS PARTS / 1 YEAR LABOUR

Mobile Bain Maries

Product Information

Deliver and Serve Hot Meals in any room

Focus Bain Maries are designed for cost-effective hot food storage, transport and service. Strong but lightweight and easy to push/pull.

The Bain Maries feature forced air heating and recirculation, offering energy saving efficiency, faster heat-up times, quicker heat recovery times and even distribution of heat with no hot spots. Designed to hold 1/1GN size Gastronorm containers or smaller equivalents (1/2GN, 1/3GN), up to 150 mm deep.

The units are finished with attractive easy to clean coated steel panels with high resistance to marking and scuffing. Front and end panels in specially coated grey steel.

Hot Cupboard stainless steel sliding doors lift off for maintenance and cleaning. Inside panels are finished in bright polished stainless steel. Rodded shelves maximise hot air circulation.

Focus Bain Maries are available without Heated Gantry, Sneeze Screen and Drop-down Trayslide. Please contact us for details.

Features

  • Transfer hot food directly from oven to the Bain Marie
  • Hot Cupboards are designed to hold additional food Gastronorm containers
  • Worktop is designed to enable fast and safe removal of hot food containers
  • Fan-heated Hot Cupboard has two rodded shelves to hold additional containers or plates
  • Highly efficient and safe, lightweight, no water, easy to clean and maintain
  • Heated Gantry fitted with safety jacketed quartz heat lamps
  • Economic to buy, economic to operate.
  • Fan assisted heating system, lifts out for maintenance and cleaning.
  • Even temperatures throughout.
  • Dry heat Bain Marie tops take gastronorm containers (not supplied).
  • Front and end panels in Merlin Grey durable plastic coated steel.
  • Bright polished stainless steel interior.
  • Stainless steel sliding doors lift off for cleaning.
  • Complete with 125 mm diameter all swivel castors 2 with brakes.

Model Specifications

2FBMD
L.757* D.665 H.900 56kg 10amp/2.12kW

3FBMD
L.1085* D.665 H.900 80kg 10amp/2.34kW

4FBMD
L.1413* D.665 H.900 100kg 15amp/2.56kW

Optional Extras

FSS - Optional Stainless Steel Front and End Panels
FCB - Four Corner Buffers
LEGS - Legs to replace castors (must be stated at time of order) No Extra Cost

Downloads

2FBM/2FBMD

3FBM/3FBMD

4FBM/4FBMD

User Instructions

DWG files available on request

Find your local dealer
  • Plug in and go

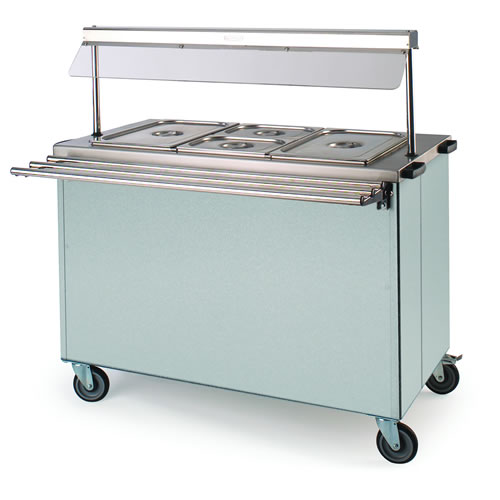

  • 3GN Bain Marie, 3FBMD

    3FBMD Bain Marie

  • 3GN Bain Marie, 3FBMD

    3GN Bain Marie, 3FBMD

  • Portable bain marie, 3FBMD

    Portable bain marie, 3FBMD


Model Specifications

  • Code: 2FBMD
  • Holds 2x 1/1GN containers**
  • Length: 757*
  • Depth: 665
  • Height: 900
  • Height (with gantry): 1320
  • Weight: 56kg
  • Power rating: 10amp/2.12kW
  • 1/1GN pan capacity: 2
  • Code: 3FBMD
  • Holds 3x 1/1GN containers**
  • Length: 1085*
  • Depth: 665
  • Height: 900
  • Height (with gantry): 1320
  • Weight: 80kg
  • Power rating: 10amp/2.34kW
  • 1/1GN pan capacity: 3
  • Code: 4FBMD
  • Holds 4x 1/1GN containers**
  • Length: 1413*
  • Depth: 665
  • Height: 900
  • Height (with gantry): 1320
  • Weight: 100kg
  • Power rating: 15amp/2.56kW
  • 1/1GN pan capacity: 4
*Length excludes handles **Or smaller equivalents
