Bain Marie Dry Heat

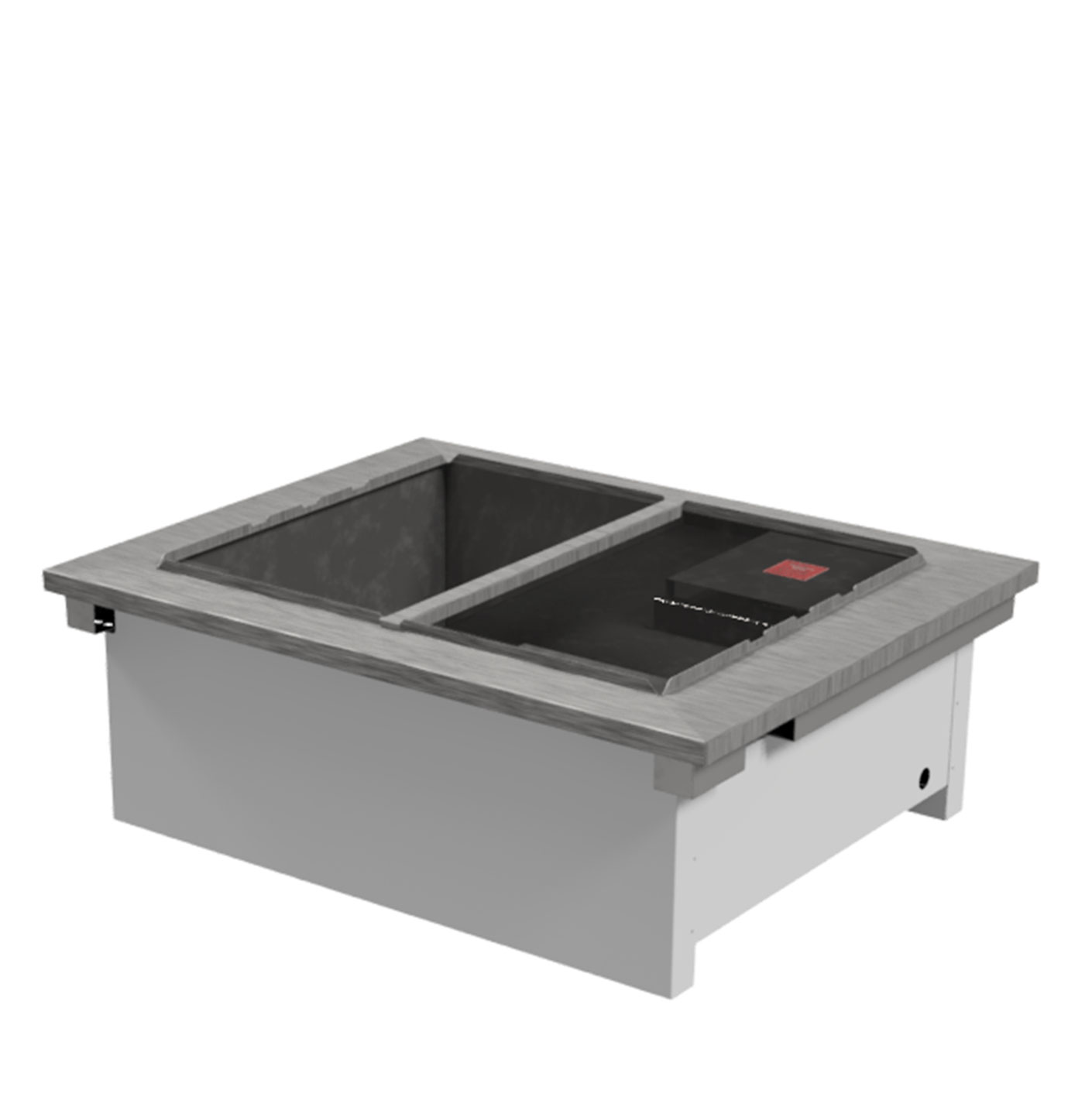

Drop-in Bain Marie, D2BMNG Model shown - DBMNG
Spec Sheet Brochure

WARRANTY
2 YEARS PARTS / 1 YEAR LABOUR

Dry Heat Bain-Marie with No Gantry

Product Information

No Gantry

Hot display units incorporating a dry well Bain-marie, fitted with Versigen's renowned innovative Sahara Fan heating cell. Easily removable for cleaning and maintenance. This forced-air, convection, heated bain-marie with accurate, digital control and specially designed air ducting offers unparalleled flexibility of use. No additional plumbing. No need to maintain water levels. No issues with water scale. These dry heat display units are designed to maintain pre-heated, cooked food at a regulated temperature. Suitable for the display of most types of hot foods, designed to accommodate various combinations of Interchangeable Gastronorm type pans up to 150 mm deep.

Height above display top is 13mm.

Features

  • Very fast heat up and recovery time
  • Digitally thermostatically controlled Bain-marie well.
  • Unique, removable, forced air heating cell and air ducting for an even heat spread
  • Low maintenance, easily cleaned, and highly efficient with recirculating hot air.
  • Gastronorm pans can be swapped out and replenished during service
  • A unique raised lip around the well allows the easy removal of pans
  • 4 models in the range holding 2 to 5 GN 1/1 Gastronorm type containers
  • Various mixed sizes of Gastronorm pans can be used in unison
  • 24 hour operation [Bain-marie opening must all be fitted with Pans or covers during service]
  • Self-contained unit. Electrics are integral no awkward fitting under counter control boxes
  • Fully insulated

Model Specifications

D2BMNG
L.830 D.660 H.13 23kg 10amp/0.9kW

D3BMNG
L.1158 D.660 H.13 29kg 10amp/1.5kW

D4BMNG
L.1486 D.660 H.13 36kg 10amp/1.5kW

D5BMNG
L.1814 D.660 H.13 44kg 10amp/1.9kW

Optional Extras

DNC - NeoCeram Glass Insert GN 1/1
Gastronorm Containers and Lids
Cutting Block

Downloads

D2BMNG

D3BMNG

D4BMNG

D5BMNG

DWG files available on request

Find your local dealer

Model Specifications

  • Code: D2BMNG
  • Length: 830
  • Depth: 660
  • Height: 13
  • Weight: 23kg
  • Power rating: 10amp/0.9kW
  • 1/1GN pan capacity: 2
  • Code: D3BMNG
  • Length: 1158
  • Depth: 660
  • Height: 13
  • Weight: 29kg
  • Power rating: 10amp/1.5kW
  • 1/1GN pan capacity: 3
  • Code: D4BMNG
  • Length: 1486
  • Depth: 660
  • Height: 13
  • Weight: 36kg
  • Power rating: 10amp/1.5kW
  • 1/1GN pan capacity: 4
  • Code: D5BMNG
  • Length: 1814
  • Depth: 660
  • Height: 13
  • Weight: 44kg
  • Power rating: 10amp/1.9kW
  • 1/1GN pan capacity: 5
